Smart Sensor PCBA Solution Case Study for Industrial Automation
1. Background Overview
A European client specializing in industrial automation required a compact, highly reliable smart sensor capable of accurately detecting humidity, temperature, and motion in challenging environments. To meet strict industrial requirements—such as signal integrity, durability, and fast time-to-market—they collaborated with KKPCB to develop a tailored PCBA solution.
2. Application Scenario
The smart sensor PCBA is used in:

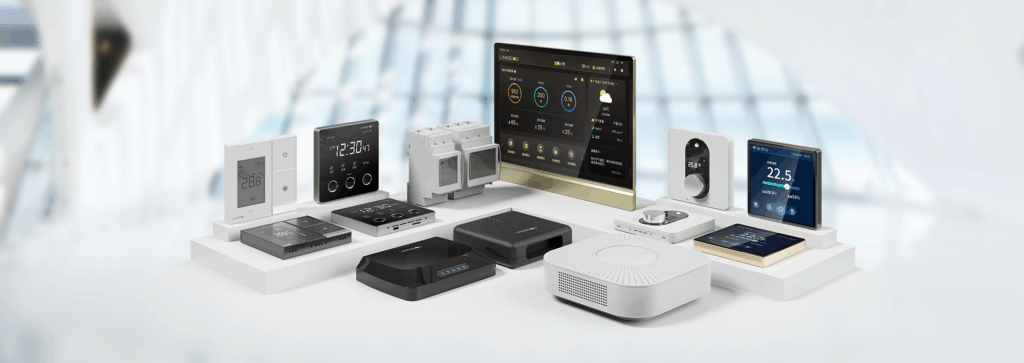

- Intelligent HVAC control systems
- Smart building automation
- Industrial environment monitoring
- Equipment predictive maintenance systems
- IoT-based industrial safety solutions
3. Product Specifications
| Parameter | Value |
|---|---|
| Sensor Type | Digital Smart Sensor |
| Functions | Humidity, Temperature, Motion |
| Output Signal | Digital I2C/Analog hybrid |
| Supply Voltage | 1.7V – 3.6V |
| Operating Temperature | -40°C to +85°C |
| Humidity Accuracy | ±3% RH (typical) |
| Temperature Accuracy | ±0.5°C (typical) |
| Size (Sensor Core) | 2.5mm x 2.5mm x 0.9mm |
4. Application Results
By leveraging KKPCB’s solution, the client achieved the following outcomes:
- Quality: Product pass rate improved to 99.85% due to improved SMT accuracy and conformal coating protection.
- Cost: Manufacturing cost reduced by 9.5% by optimizing PCB stack-up and panel utilization.
- Performance: Sensor data latency reduced by 17%, with enhanced stability in high-humidity environments.
- Delivery Time: Total lead time reduced by 25%, supporting the client’s accelerated product launch.
5. KKPCB Strengths Demonstrated in This Case
KKPCB delivered value in several key areas:
- Expertise in multi-layer PCB fabrication with precise impedance control.
- Proven experience in high-density SMT assembly with components as small as 0201 and BGA/QFN.
- Strict quality control under ISO13485 and IATF16949 for industrial-grade electronics.
- Flexible production capabilities, from quick-turn prototyping to high-volume batch delivery.
- Deep understanding of sensor application environments and customer-specific expectations in Europe.
6. KKPCB’s Custom Manufacturing Solution
KKPCB provided a one-stop custom PCBA solution, focused on:
- PCB Manufacturing: Utilized a 4-layer board with ENIG surface finish and controlled impedance traces for signal accuracy.
- PCBA Assembly: Applied high-precision SMT for miniature MEMS sensor placement with ±0.03mm tolerance.
- Protective Coating: Applied localized conformal coating around the sensor ICs to enhance environmental resistance.
- Testing Strategy: Functional and ICT testing were introduced at multiple stages to guarantee performance.
This approach aligned with KKPCB’s commitment to “Zero Defect Manufacturing” and ensured the sensor PCBAs could withstand harsh industrial conditions while maintaining long-term accuracy.
7. Measured Impact After Implementation
After deployment, the customer reported:
- Improved reliability, reducing field failure rates by 52%.
- Accelerated time-to-market, with prototypes delivered in 7 working days, and production runs shortened by 2 weeks.
- Sustained performance, with stable readings even in 95% RH and -20°C environments.
- Stronger competitiveness, as the enhanced PCBA enabled differentiation in a highly price-sensitive market.
